Managing GitHub with Terraform (and GitHub!)

Benjamin Clark
Part 2 of 4 in Infrastructure as Code (IaC)
Introduction

As my quest to refactor monsternames kind of runs out of control - spawning a whole GitHub organisation, several (as yet to be published) blog posts, and some fun projects I came across several problems:
-
I needed many GitHub repositories to host all the various refactored aspects and new bits of code
-
I needed uniform branch protection if I wanted to open source this stuff
-
I needed a codeowner file from the first commit
-
I needed to fix configuration drift if anything bad happened
Perhaps more importantly, all of this I’m doing in my spare time outside of my main (read: rent-paying and pastry-buying) work so I needed a way to fulfil the above whilst still leaving enough spare time to cycle, play Badminton (badly), paint miniatures (also badly), and play 20-year old Total War games on a 2-year old laptop.
So I figured I’d use Terraform.
Since writing this article, I’ve announced
that the underlying codebase for this is now live. So check that out for links to the sudoblark.terraform.github
codebase in its entirety.
The Goal
-
Have a single GitHub repository as the single source-of-truth for the GitHub configuration of the Sudoblark Organisation
-
Enforce a sensible, default, branch protections across all repositories
-
Enforce a sensible, default, codeowners file across all repositories
- But also allow additional codeowners to apply on a per repo basis
-
Ensure all repositories are created with the above
CODEOWNERS
and a sensibleLICENSE.txt
depending on if they should be open or closed source -
Use a standard Terraform workflow with GitHub actions, like we did for AWS in a previous blog post
-
Run applies on a regular basis to fix configuration drift
-
Use a dedicated bot account for actions against the Sudoblark Ltd organisation
The actual setup
Prerequisites
Before beginning work on the implementation, I created the following
-
The
sudoblark.terrform.github
repository within the Sudoblark organisation to act as the single source of truth. -
As my first commit to create the main branch I created a
.github/CODEOWNERS
file - no reverting back to a previous commit withoutCODEOWNERS
for anyone - aLICENSE.txt
(read more on what this is via GitHub’s own article here), and a sensible default.gitignore
. -
As per my post (read the prerequisites section there for exact details) setting up Terraform from scratch for AWS I also had in place:
-
tfenv
-
AWSCLI
-
A sudoblark profile block
-
An S3 bucket to store terraform state
-
-
A new GitHub user to act as the bot, adding them as admin to the organisation manually

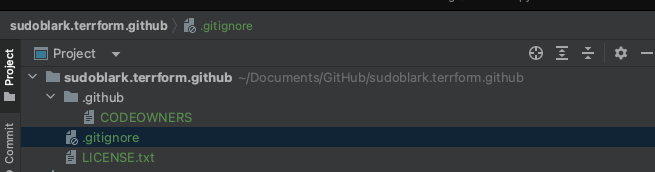

This meant the state of play was as follows:

Whilst the contents of CODEOWNERS
just makes my own GitHub account default for everything (for now).
Terraform
Setting to work on the terraform - and taking into account the relatively basic requirements (i.e. no teams needed as it’s still just me at the moment) - I set to work on making a mono repository for GitHub based on the GitHub provider module for Terraform. This resulted in:
-
A repository module within the mono repository
-
Instantiations of said repository module
We’ll cover both below.
Repository Module
Creation

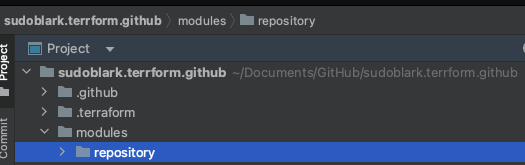

The structure, as we’re using a mono repository, is quite simple; we just make a modules folder, and in there add our repository module which will do all the setup of a single repository.

Whilst our content is as per below:
% ls -la
total 72
drwxr-xr-x 11 bclark staff 352 Aug 6 20:26 .
drwxr-xr-x 3 bclark staff 96 Aug 1 00:28 ..
-rw-r--r-- 1 bclark staff 570 Aug 6 19:20 branch_protection.tf
-rw-r--r-- 1 bclark staff 211 Aug 6 18:57 closed_source.txt
-rw-r--r-- 1 bclark staff 277 Aug 6 19:03 data.tf
-rw-r--r-- 1 bclark staff 995 Aug 6 20:26 file.tf
-rw-r--r-- 1 bclark staff 350 Aug 6 20:26 locals.tf
-rw-r--r-- 1 bclark staff 124 Aug 1 00:30 main.tf
-rw-r--r-- 1 bclark staff 1490 Aug 6 18:57 open_source.txt
-rw-r--r-- 1 bclark staff 549 Aug 6 19:23 repository.tf
-rw-r--r-- 1 bclark staff 1025 Aug 6 20:18 variables.tf
variables.tf
Here we define the inputs for the module, and sensible defaults:
variable "name" {
description = "Name of the repository to be created."
type = string
}
variable "description" {
description = "Description we should give to the repository"
type = string
}
variable "archived" {
description = "If the repository is archived or not."
type = bool
default = false
}
variable "topics" {
default = null
description = "An array of topic names to be added to the repository"
type = list(string)
}
variable "visibility" {
default = "private"
description = "Determines repository visibility"
type = string
validation {
condition = anytrue([
var.visibility == "private",
var.visibility == "public"
])
error_message = "Visibility must be either 'private' or 'public'"
}
}
variable "open_source" {
description = "If the repository should be licensed as open source or not."
type = bool
default = false
}
variable "codeowners" {
description = "Additional codeowners for the repository"
type = list(string)
default = null
}
locals.tf
Here, we transform our variables - where needed - to the values we actually want to use within the module and define default codeowners across the organisation. For this module, we simply want to take the list of codeowners we get given and transform them into valid CODEOWNER
file entries, whilst codeowners are hard-coded to GitHub usernames. In larger organisations, it’d probably be better to manage this via teams but it’s suitable enough for my needs.
locals {
codeowners = var.codeowners == null ? null : formatlist("# Codeowner managed by sudoblark.terraform.github\n* %s", var.codeowners)
codeowners_string = var.codeowners == null ? null : join("\n", local.codeowners)
default_codeowners = [
"* @benjaminlukeclark"
]
default_codeowners_string = join("\n", local.default_codeowners)
}
A bit of explanation may be needed here. The var.codeowners == null ? <true> : <false>
syntax is how terraform implements ternary operators, although it calls it a conditional expression. So, put simply, if var.codeowners
is null
then local.codeowners
and local.codeowners_string
is also null but if not then we dynamically create valid codeowner entries. We’ll cover some examples in file.tf
.
main.tf
This simply defines our required providers, required as the GitHub provider has an unexpected feature.
terraform {
required_providers {
github = {
source = "integrations/github"
version = "~> 4.0"
}
}
}
.txt files
These define default licensing for Sudoblark Ltd GitHub repositories, based on if they’re open or closed source.
data.tf
This defines data needed for the module. As branch_protection.tf
relies on the main
branch being created - which takes a while - we set references to the main branch here such that terraform waits until that branch has been auto-created. If we didn’t do this, then downstream dependencies with hard-coded references to main
might fail as they would be referencing an object that has not yet been created via the GitHub RESTAPI. So instead, we set this reference via a data object and implicit dependency detection does the rest.
data "github_branch" "main" {
# Get reference to main branch for repository, which should be created automatically.
# So using this ensures we wait till repo is fully created before doing more things.
repository = github_repository.repository.name
branch = "main"
}
repository.tf
Perhaps the most important file. This actually makes the repository, with some hardcoded defaults (which we want to hard-code across the entire organisation, but are very easy to amend if we need to in the future via simple Boolean variables)
resource "github_repository" "repository" {
name = var.name
description = format("%s%s", var.description, " - repo managed by sudoblark.terraform.github")
allow_squash_merge = true
allow_rebase_merge = false
archived = var.archived
auto_init = true
delete_branch_on_merge = true
topics = var.topics == null ? null : var.topics
visibility = var.visibility
has_downloads = true
has_projects = true
has_issues = true
has_wiki = true
}
Notice the description. Here, we’re making it abundantly clear how this repository is managed in case anyone comes across it and wonders how to change merge request settings, license files, codeowners etc.
branch_protection.tf
Here, we protect the main branch of our repository. You’ll be horribly surprised how many places don’t protect their main branch. For now it’s hard-coded, but it’d be simple enough to have this resource take in a map of maps (similar to Python’s ability to do nested dictionaries) of any number of branch protection rules on a per repo basis. For example, you could have default main
branch protections but protect additional development
branches for some repos, for others require more reviewers, etc. But perfection is the enemy of progress, and for my particular use case I can just hard-code the main protections and improve iteratively if needed:
resource "github_branch_protection" "main" {
repository_id = github_repository.repository.node_id
allows_deletions = false
enforce_admins = false
pattern = data.github_branch.main.branch
require_conversation_resolution = true
required_linear_history = false
required_status_checks {
strict = true
}
required_pull_request_reviews {
dismiss_stale_reviews = true
require_code_owner_reviews = true
required_approving_review_count = 1
}
}
file.tf
Here, we create LICENSE.txt
and CODEOWNER
files for every repository based on var.open_source
and the calculated codeowner_string
items in local.tf
from earlier:
resource "github_repository_file" "license" {
repository = github_repository.repository.name
branch = data.github_branch.main.branch
file = "LICENSE.txt"
content = var.open_source ? file("${path.module}/open_source.txt") : file("${path.module}/closed_source.txt")
commit_message = "license.txt - managed by sudoblark.terraform.github"
overwrite_on_create = true
}
resource "github_repository_file" "repository_codeowners_file" {
repository = github_repository.repository.name
branch = data.github_branch.main.branch
file = ".github/CODEOWNERS"
content = <<EOT
# Default owners for all the things in the repo - managed by sudoblark.terraform.github
${local.default_codeowners_string}
%{if local.codeowners_string != null}
${local.codeowners_string}
%{endif~}
EOT
commit_message = "CODEOWNERS - managed by sudoblark.terraform.github"
overwrite_on_create = true
}
For the license file, we use another ternary operator to use the content of open_source.txt
if var.open_source
is true else we use the content of closed_source.txt
, whilst $(path.module)
allows us to ensure these files are local to the repository
module and not accidentally inject unknown text into our license files. If we wanted to open this up to allow custom licensing on a per repository basis this would be easy enough with similar logic to how we calculate codeowners in locals.tf
.
EOT is Terraform’s version of a Here document. It lets us define a multi-line string in a readable manner, within which we’re using string templates to simply inject the multi-line strings generated in locals.tf
. That’s a bit of a mouthful, so here’s a concrete example:
- With no
var.codeowners
defined a license file looks similar to below:
# module.repositories["terraform.aws"].github_repository_file.repository_codeowners_file will be created
+ resource "github_repository_file" "repository_codeowners_file" {
+ branch = "main"
+ commit_author = (known after apply)
+ commit_email = (known after apply)
+ commit_message = "CODEOWNERS - managed by sudoblark.terraform.github"
+ commit_sha = (known after apply)
+ content = <<-EOT
# Default owners for all the things in the repo - managed by sudoblark.terraform.github
* @benjaminlukeclark
EOT
+ file = ".github/CODEOWNERS"
+ id = (known after apply)
+ overwrite_on_create = true
+ repository = "terraform.aws"
+ sha = (known after apply)
}
- Whilst if
var.codeowners
has items in its list, ourlocals.tf
will dynamically generate a multi-line string with each codeowner on a new line. Which may result in a file similar to the below:
# module.repositories["monsternames.open-api"].github_repository_file.repository_codeowners_file will be created
+ resource "github_repository_file" "repository_codeowners_file" {
+ branch = "main"
+ commit_author = (known after apply)
+ commit_email = (known after apply)
+ commit_message = "CODEOWNERS - managed by sudoblark.terraform.github"
+ commit_sha = (known after apply)
+ content = <<-EOT
# Default owners for all the things in the repo - managed by sudoblark.terraform.github
* @benjaminlukeclark
# Codeowner managed by sudoblark.terraform.github
* hello
# Codeowner managed by sudoblark.terraform.github
* world
EOT
+ file = ".github/CODEOWNERS"
+ id = (known after apply)
+ overwrite_on_create = true
+ repository = "monsternames.open-api"
+ sha = (known after apply)
}
Instantiation
Using this newly created module is extremely easy. The sudoblark.terraform.github
repository simply has three .tf
files in the root:
% ls -la | grep .tf
-rw-r--r-- 1 bclark staff 609 Aug 6 21:11 locals.tf
-rw-r--r-- 1 bclark staff 557 Aug 6 20:43 main.tf
-rw-r--r-- 1 bclark staff 397 Aug 6 20:43 repositories.tf
main.tf
is a standard setup to use s3 as remote state storage, so no need to cover that.
locals.tf
defines all of our repositories we wish to create in a complex data structure:
locals {
repositories = {
"sudoblark.terraform.github" : {
description : "Terraform setup for Sudoblark GitHub",
topics : ["terraform", "github", "iac"]
},
"monsternames.open-api" : {
description : "OpenAPI definition for the monsternames RESTAPI",
topics : ["open-api"]
},
"terraform.aws" : {
description : "Terraform setup for Sudoblark AWS",
topics : ["terraform", "aws", "iac"]
},
"aws.lambda.dynamoapi" : {
description : "A generic Python lambda which supports CRUD operations on top of DynamoDB",
topics : ["aws"]
}
}
}
Which means our actual terraform is simple and doesn’t need any real explanation:
module "repositories" {
for_each = local.repositories
source = "./modules/repository"
name = each.key
description = each.value.description
topics = try(each.value.topics, [])
visibility = try(each.value.visibility, "private")
archived = try(each.value.archived, false)
codeowners = try(each.value.codeowners, null)
providers = {
github = github
}
}
And with that, we’re ready to manage all of Sudoblark’s GitHub with terraform locally… but that’s a bit rubbish. Lets see how we can implement GitOps using CI/CD next.
CI/CD
The core workflow - what to do on an open merge request or merge to main - is quite literally lifted and shifted from the setup I made which manages AWS via Git, Terraform and CI/CD. I made a post on that, so read that to understand the core setup.
The only differences with this use-case is that we wish to fix configuration drift on a regular basis, and we need the workflow to have access to all of the GitHub organisation. We already have a workflow which ensures the real-world matches expected state; we do it on a merge to main. So we can just add a cron schedule to that, allow manual triggering just in case, and ignore changes to the files the workflow itself may amend to prevent the workflow accidentally trigger itself if changes are needed on the sudoblark.terraform.github
repository.
on:
workflow_dispatch:
schedule:
- cron: 0 0 * * *
push:
branches:
- main
paths-ignore:
- '.github/**'
- 'LICENSE.txt'
Then, to make sure we don’t accidentally delete all of our repositories upon any such refresh we can follow Hashicorp’s advice and add a lifecycle policy to our github_repository
and github_branch_protection
blocks to prevent them being deleting upon an apply:
lifecycle {
prevent_destroy = true
}
And finally, we create a new access token (for sudoblark-bot) and add it to our GitHub organisation:

And amend our workflows slightly to both:
-
Allowing switching between the repository-targeting and org-targeting tokens
-
Perform said targeting when appropriate
Which results in the two workflow files below:
commit-to-pr.yaml
name: Terraform checks on pull request
env:
AWS_ACCESS_KEY_ID: ${{ secrets.SUDOBLARK_AWS_ACCESS_KEY_ID }}
AWS_SECRET_ACCESS_KEY: ${{ secrets.SUDOBLARK_AWS_ACCESS_KEY_VALUE }}
AWS_DEFAULT_REGION: eu-west-2
# Automatically generated token unique to this repo per workflow execution
REPO_GITHUB_TOKEN: ${{ secrets.GITHUB_TOKEN }}
# Explicitly provided token in ORG to access entire organisation
ORG_GITHUB_TOKEN: ${{ secrets.SUDOBLARK_GITHUB_TOKEN }}
on: [pull_request]
permissions:
contents: read
pull-requests: write
jobs:
validation:
name: Terraform validate
runs-on: ubuntu-20.04
steps:
- uses: actions/checkout@v3
env:
GITHUB_TOKEN: ${{ env.REPO_GITHUB_TOKEN }}
- name: terraform validate
uses: dflook/terraform-validate@v1
linting:
name: Terraform lint
runs-on: ubuntu-20.04
steps:
- uses: actions/checkout@v3
env:
GITHUB_TOKEN: ${{ env.REPO_GITHUB_TOKEN }}
- name: Install tflint
uses: terraform-linters/setup-tflint@v3
- name: Run tflint
run: tflint
plan:
name: Terraform plan
runs-on: ubuntu-20.04
needs: [validation, linting]
steps:
- uses: actions/checkout@v3
env:
GITHUB_TOKEN: ${{ env.REPO_GITHUB_TOKEN }}
- id: install-aws-cli
uses: unfor19/install-aws-cli-action@v1
- name: terraform plan
uses: dflook/terraform-plan@v1
env:
GITHUB_TOKEN: ${{ env.ORG_GITHUB_TOKEN }}
apply.yaml
name: Terraform apply
env:
AWS_ACCESS_KEY_ID: ${{ secrets.SUDOBLARK_AWS_ACCESS_KEY_ID }}
AWS_SECRET_ACCESS_KEY: ${{ secrets.SUDOBLARK_AWS_ACCESS_KEY_VALUE }}
AWS_DEFAULT_REGION: eu-west-2
# Explicitly provided token in ORG to access entire organisation
GITHUB_TOKEN: ${{ secrets.SUDOBLARK_GITHUB_TOKEN }}
on:
workflow_dispatch:
schedule:
- cron: 0 0 * * *
push:
branches:
- main
paths-ignore:
- '.github/**'
- 'LICENSE.txt'
permissions:
contents: read
pull-requests: write
jobs:
apply:
name: Terraform apply
runs-on: ubuntu-20.04
steps:
- name: Checkout
uses: actions/checkout@v3
- name: terraform apply
uses: dflook/terraform-apply@v1
with:
auto_approve: true
The Result
After importing my existing repositories by simply referencing them by name (including the repository that is used to manage repositories!):
terraform import "module.repositories[\"terraform.aws\"].github_repository.repository" "terraform.aws"
terraform import "module.repositories[\"monsternames.open-api\"].github_repository.repository" "monsternames.open-api"
terraform import "module.repositories[\"sudoblark.terraform.github\"].github_repository.repository" "sudoblark.terraform.github"

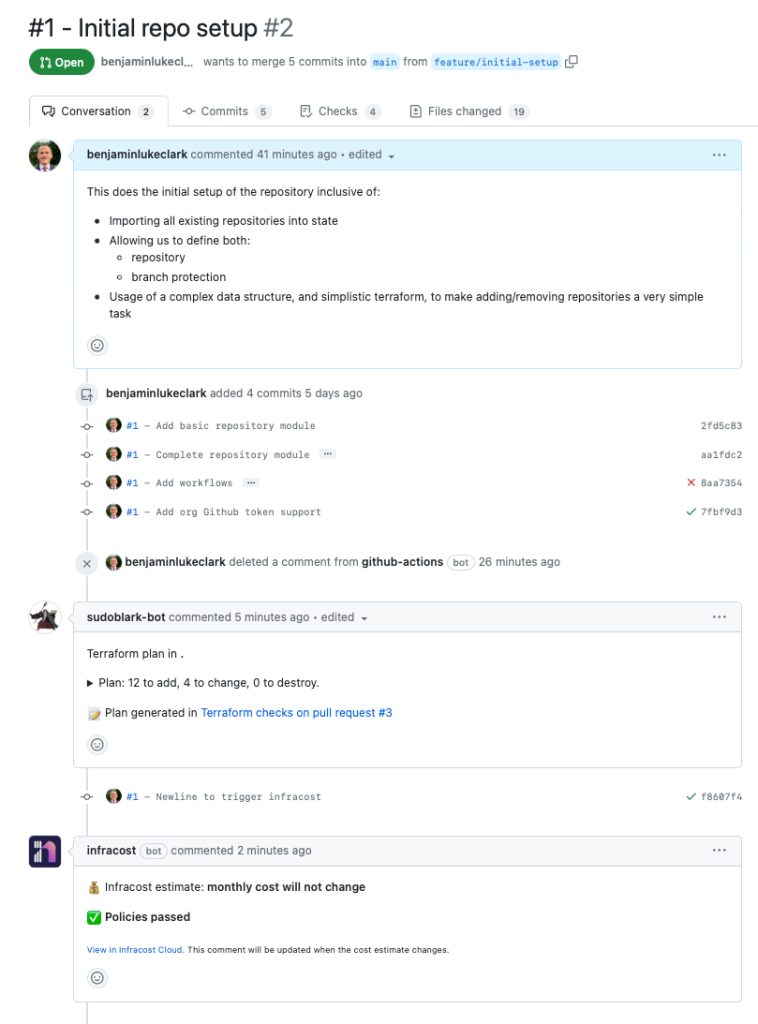

Our pull request works as expected:

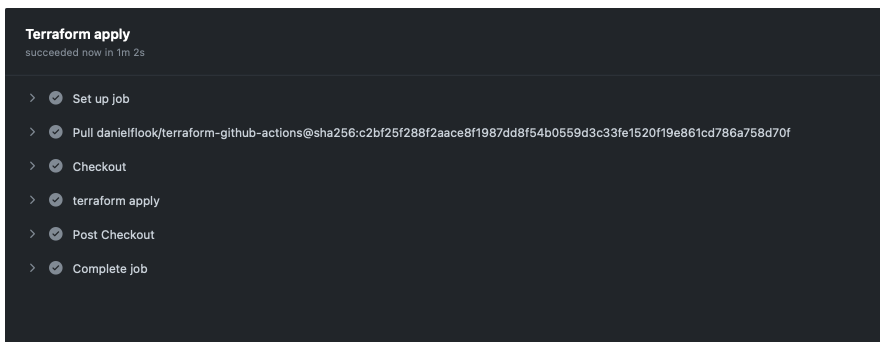

And then, when we merge to main, changes are made:

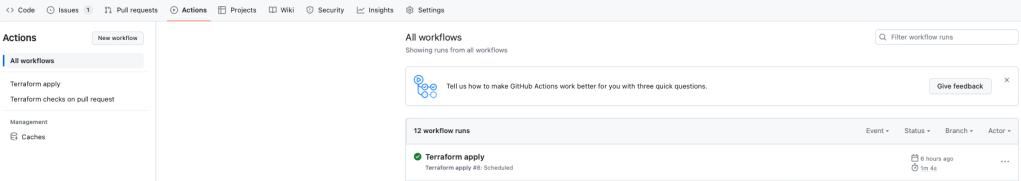

And, thanks to our cron job, said apply will run on a regular schedule to fix configuration drift if it should ever occur:

Conclusion
So that’s it, we’ve managed to successfully:
-
Have a single repository in the Sudoblark GitHub to manage the Sudoblark GitHub (and, indeed, the repository even manages itself!)
-
Enforce default branch protection across all repositories
-
Enforce a default
CODEOWNERS
file across all repositories and allow this to be extended on a repo-by-repo basis -
Ensure all repositories are made with a
CODEOWNERS
andLICENSE.txt
file, withLICENSE.txt
defaults for open vs closed source -
Use a standard Terraform workflow with GitHub actions, like we did for AWS in a previous post, inclusive of swapping out organisational and repository-specific
GITHUB_TOKEN
values as appropriate -
Run applies on a regular basis to fix configuration drift
-
Use a dedicated bot account for CI/CD actions which require GitHub organisational access
-
Carry out cost, quality, best-practice, validation and planning checks on pull requests and applies on merges to main
I hope you’ve enjoyed this little read, learned a thing or two, and had some good thoughts about you can extend Infrastructure-as-Code within your own organisation. I’m certainly happy as with this pattern in place I can rapidly switch back to refactoring monsternames-api and create some juicier blog posts in the future.
Part 2 of 4 in Infrastructure as Code (IaC)
